Subnet Calculator
Introduction
This document provides background information on the purpose and usage of the Subnet Calculator.
I created this tool while taking a Network Fundamentals course at Purdue University. The course included several subnetting assignments that required performing binary calculations using a host IP address, a major network mask, and a subnet mask.
Using these inputs, I had to perform bitwise operations to determine several key values, as shown in Table 1.
Table 1 – Example Subnet Sheet
| Variable | Example Value |
|---|---|
| Host IP Address (Provided) | 219.2.3.201 |
| Major Network Mask (Provided) | 255.255.0.0 |
| Major Network Address | 219.2.0.0 |
| Major Network Broadcast Address | 219.2.255.255 |
| CIDR Notation Major Network | 219.2.0.0/16 |
| Number of Host Bits | 16 |
| Number of Hosts | 65,534 |
| Subnet Mask (Provided) | 255.255.255.192 |
| Number of Subnet Bits | 10 |
| Number of Usable Subnets | 1,023 |
| Number of Host Bits per Subnet | 6 |
| Number of Usable Hosts per Subnet | 62 |
| Subnet Address for this Host | 219.2.3.192 |
| First Host IP Address for this Subnet | 219.2.3.193 |
| Last Host IP Address for this Subnet | 219.2.3.254 |
| Broadcast Address for this Subnet | 219.2.3.255 |
| Network Address of the 5th Usable Subnet | 219.2.1.0 |
| Broadcast Address of the 5th Usable Subnet | 219.2.1.63 |
Technology Stack
The calculator’s user interface is built using HTML and styled with CSS, while all subnetting calculations are handled using Python.
This project leverages PyScript to run Python directly in the browser, allowing the main.py script to interact with HTML elements without requiring a backend server.
Features
- Interactive Web Interface: Intuitive UI for entering network parameters.
- Comprehensive Calculations: Computes all major network and subnet values, as shown in Table 1.
- Flexible Options: Allows users to include or exclude “all 0’s” and “all 1’s” subnets, affecting usable subnet counts.
- Nth Subnet Calculation: Determines the network and broadcast address for any nth usable subnet.
- Terminal Version: A standalone Python script (
SubnetCalculator - Terminal.py) offers equivalent functionality via the command line.
Project Files
| File | Description |
|---|---|
index.html | Main HTML file for the user interface. |
main.py | Python script containing subnetting logic (executed by PyScript). |
styles.css | Stylesheet for the web interface. |
SubnetCalculator - Terminal.py | Command-line version of the calculator. |
pyscript.toml | Configuration file for PyScript. |
Usage
You can use the Subnet Calculator directly at: konnerlester1015.github.io/Subnet-Calculator
- Enter the required network parameters.
- Click Submit to view calculated results.

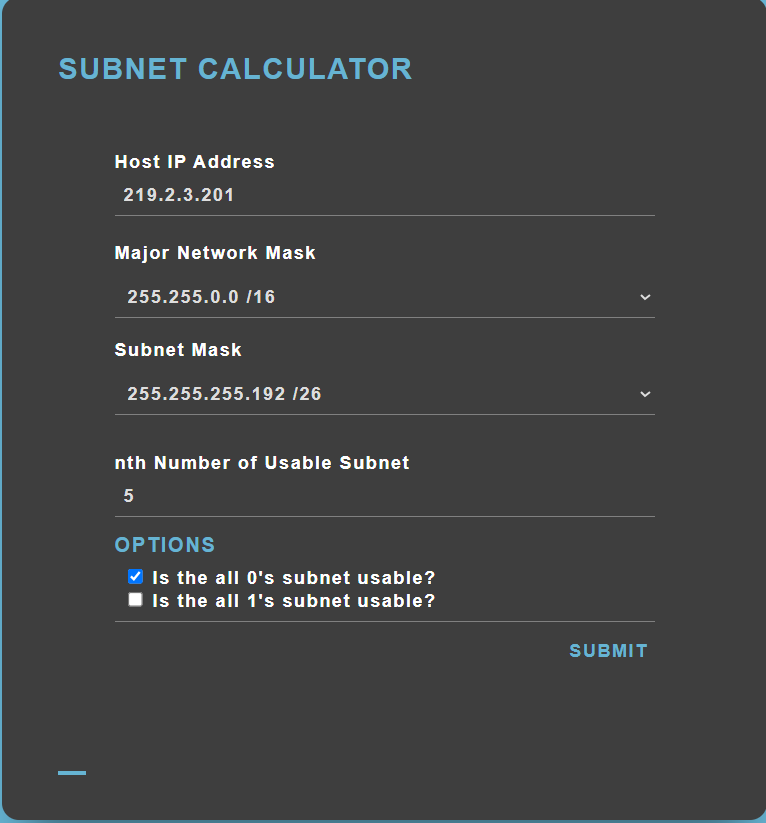

Input Example:

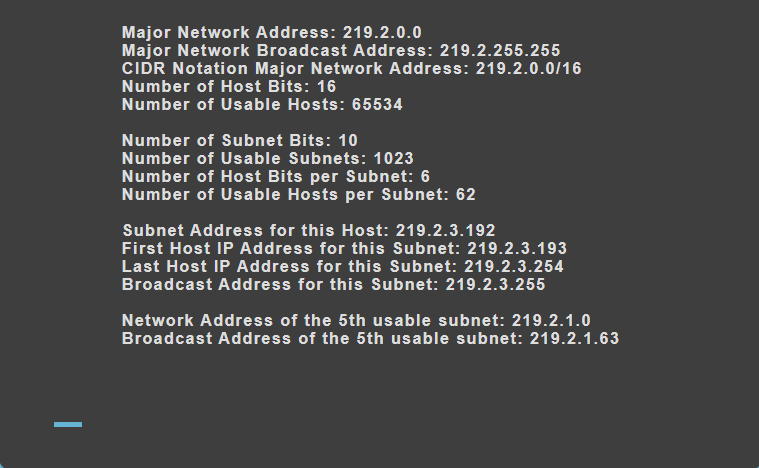

Output Example:
